"Developing a process for CAE simulation needs to become part of the overall design process. The process of design has been studied and defined over the years, but the process of CAE simulations has had little attention"

Tecplot 360 is a suite of visualization and analysis tools that can handle large data sets, automate workflows, and visualize parametric results.

You’ll be able to quickly make engineering decisions and communicate your results with integrated XY, 2D, and 3D plotting.

Analyze Complex Results

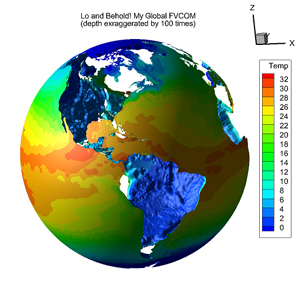

Load Tecplot, FLUENT, PLot3D, CGNS, OpenFOAM, FVCOM, VTU data and 22 other CFD, FEA, structural analysis, and industry-standard data formats and generate reports and compare solutions in a multi-frame environment with multiple pages.

Explore Billion Cell Models

Dramatically improve performance for large data-sets: SZL Technology reduces the amount of solution data loaded when analyzing CFD results. The technique involves breaking the grid into small pieces, called subzones, and reading in only the subzones needed.

Automate Routine Tasks

Automate workflows, interactively or in batch, with PyTecplot, the Python API. Record on-screen actions directly to executable Python code and leverage 100’s of macro functions to automate common analysis and plotting tasks.
